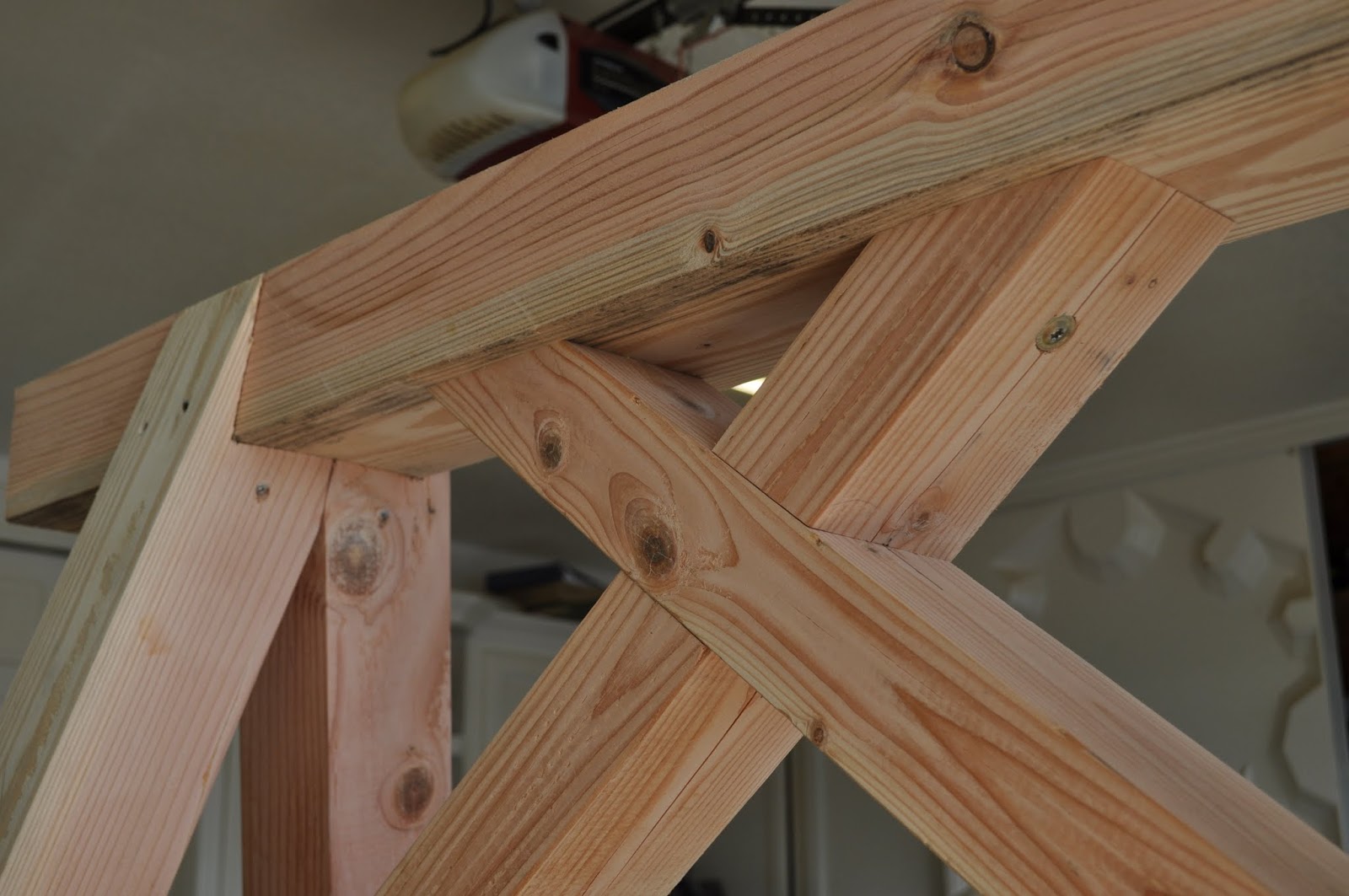

Tréteaux Dit Cadet Task Model

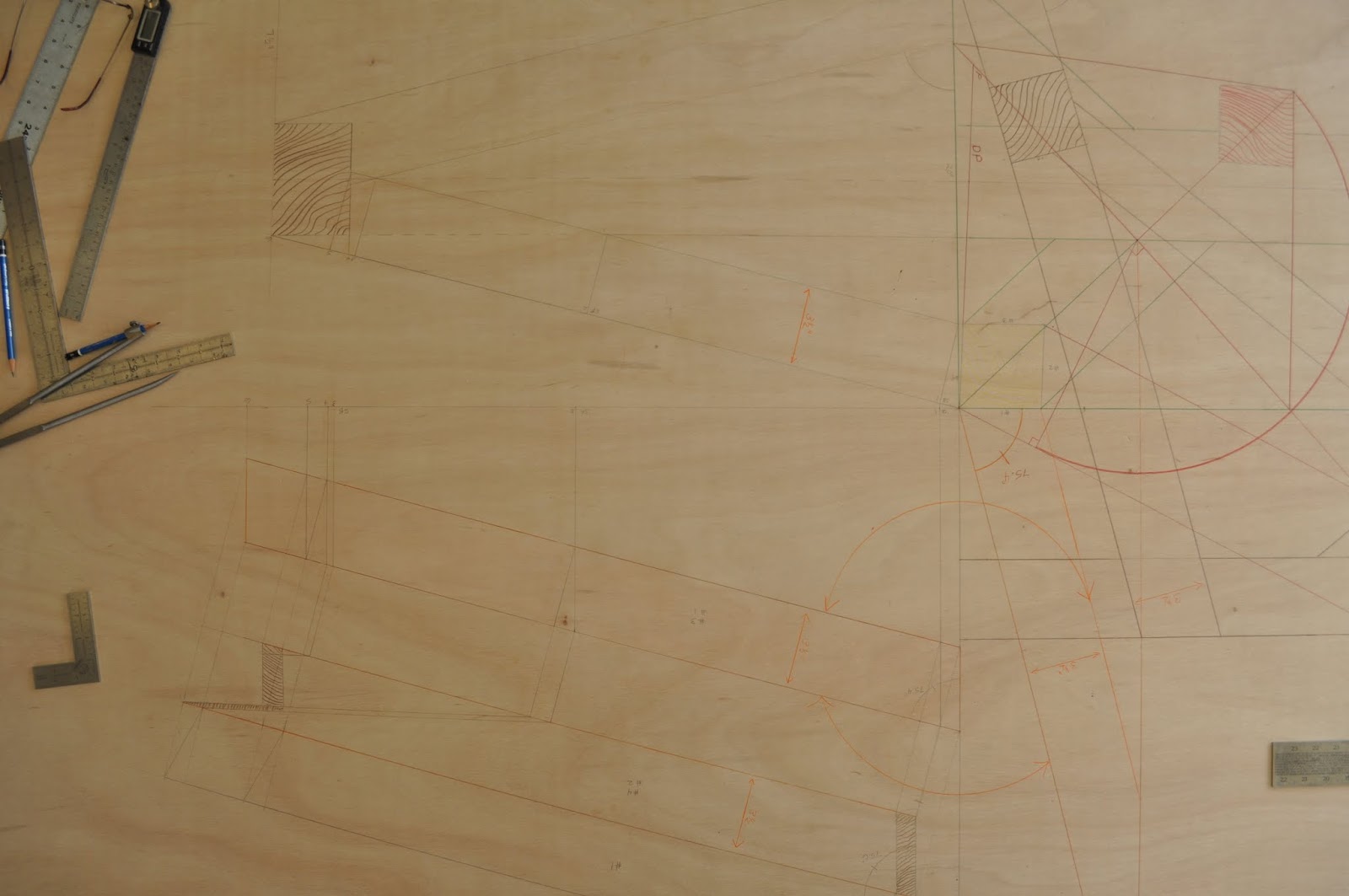

Getting started on the Tréteaux Dit Cadet task model.
tréteau à devers



Profile Slope Angles
74.95720°
75.96376°
Dimensions
20" x 48" x 30"

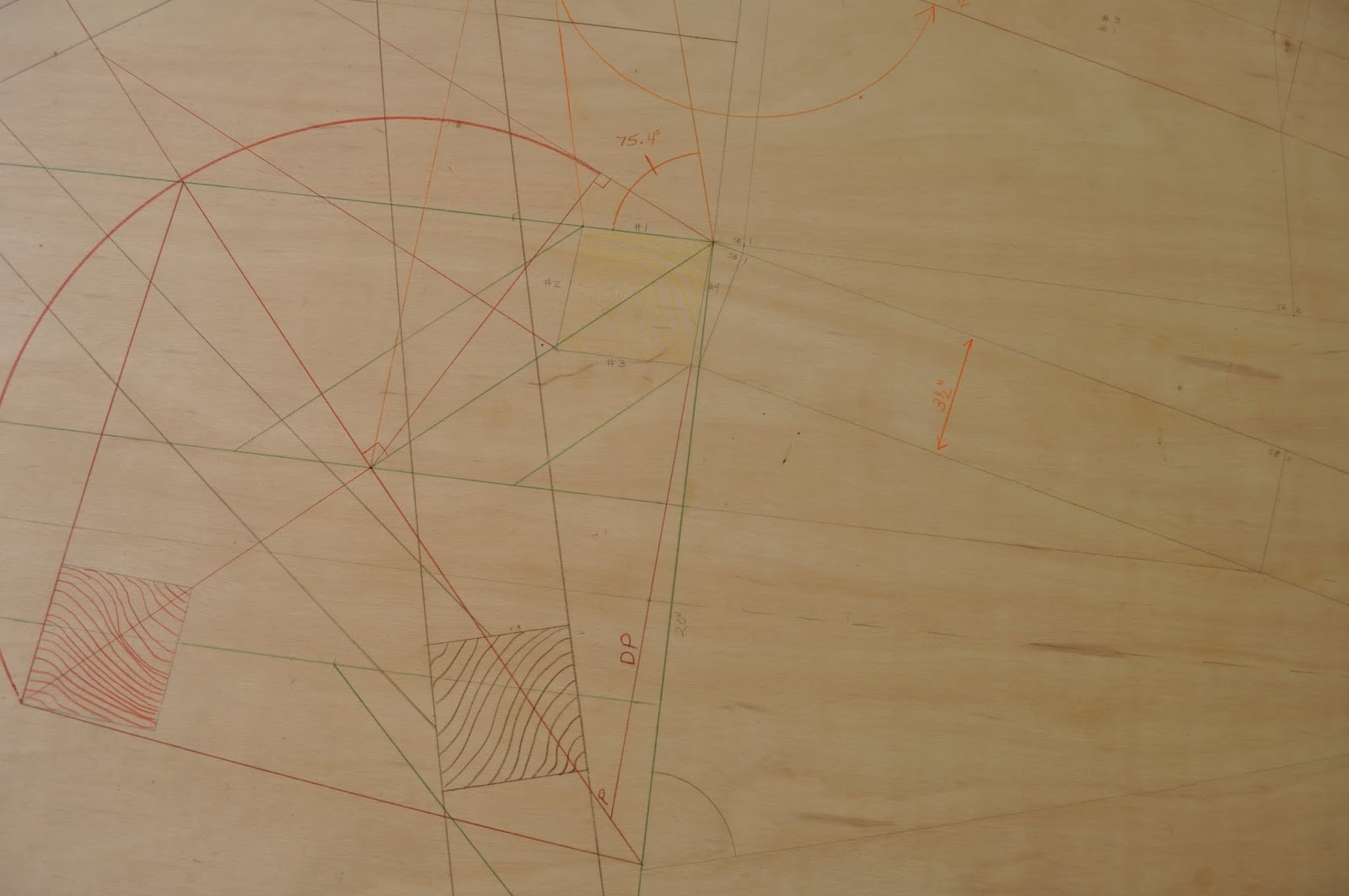

SawHorse Leg Bevel Angles
Roof Surface -- 75.38684°
DP --75.61879°

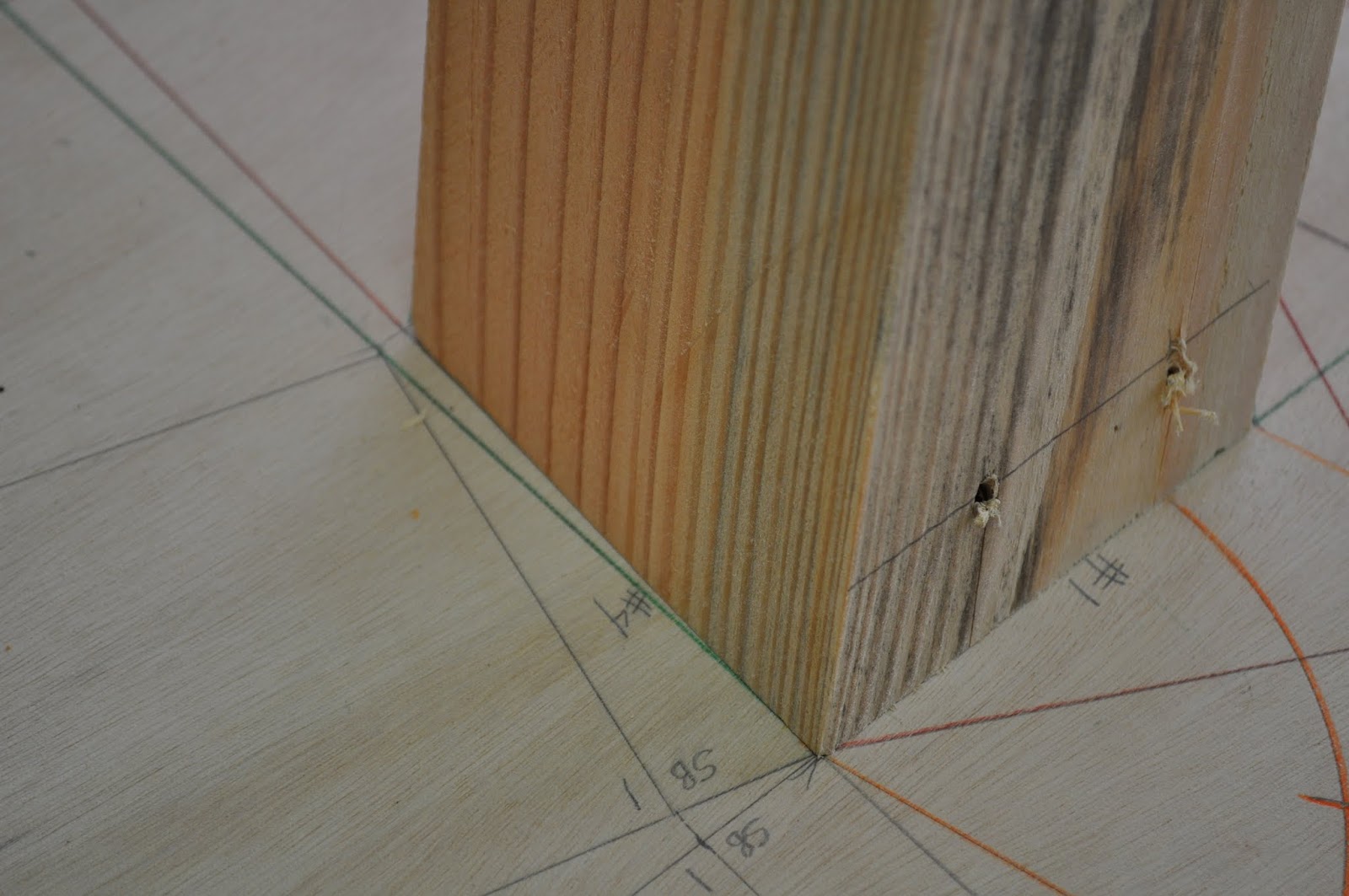

Miter Saw Settings for foot of Rafter at 75.38684° face
Miter -- 14.6°
Blade Bevel -- 14.8°
